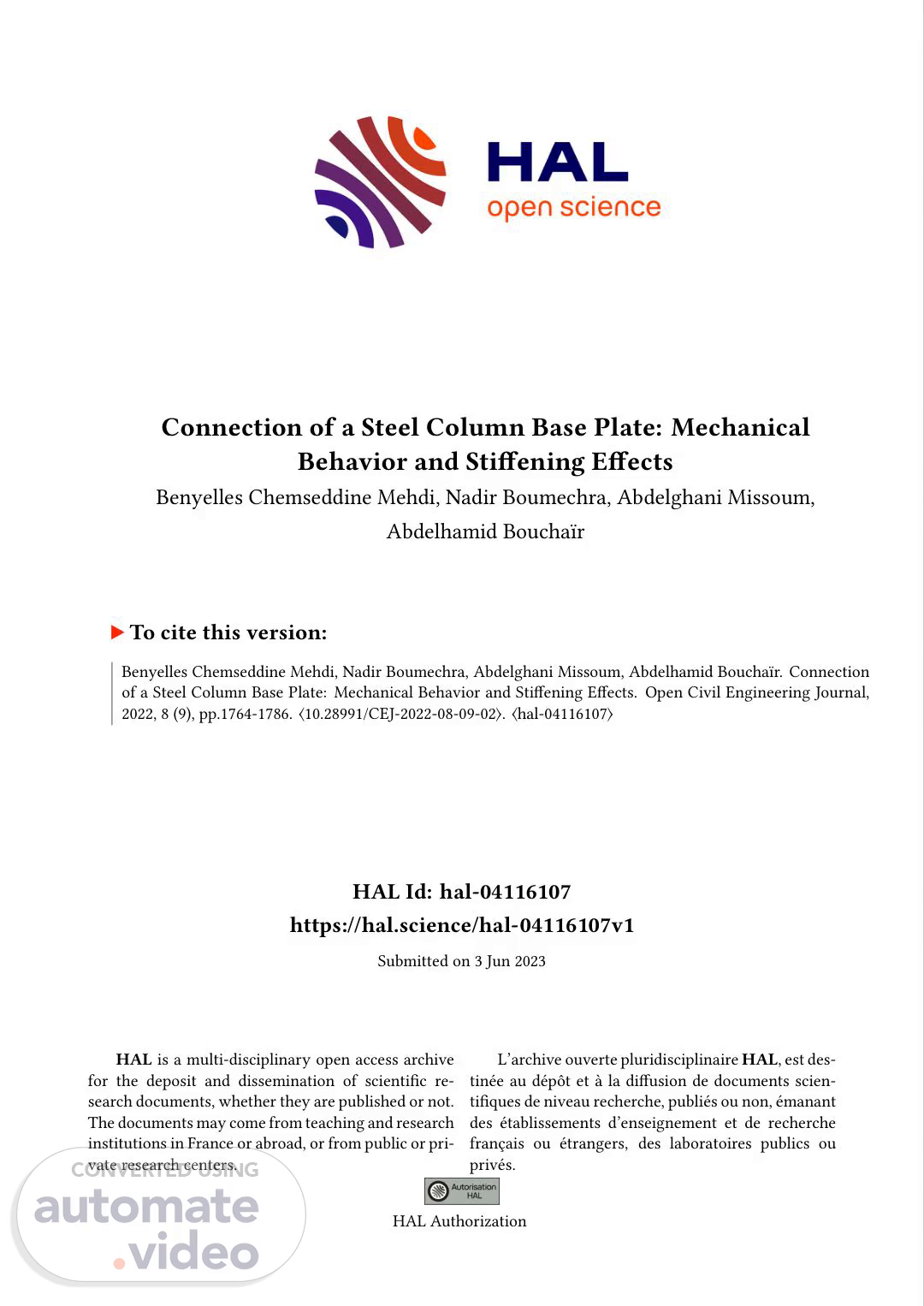

Connection of a Steel Column Base Plate: Mechanical Behavior and Stiffening Effects

[Audio] The mechanical behavior of steel column base plates has been extensively studied by the authors, who explored various factors that affect their performance. These factors include the geometry of the tested specimens, numerical modeling techniques, and experimental results. The study reveals that the geometry of the base plate plays a significant role in determining its mechanical behavior, particularly when it comes to resisting external loads. The authors also found that numerical models can accurately predict the behavior of steel column base plates under different loading conditions. However, experimental results often show discrepancies between predicted and actual behavior, highlighting the need for further research in this area. The findings of this study provide valuable insights into the mechanical behavior of steel column base plates, which is essential for designing and constructing safe and efficient structures. The paper's conclusions suggest that engineers should focus on optimizing the geometry of the base plate to improve its mechanical behavior, particularly in terms of resisting external loads. Furthermore, the study highlights the importance of considering the material properties of the steel used in the construction of steel column base plates. The knowledge gained from this study can be applied to real-world scenarios, enabling engineers to develop more effective solutions for connecting steel columns to base plates. By examining the mechanical behavior and stiffening effects of these connections, researchers can gain a deeper understanding of the underlying mechanisms and develop more reliable designs. This knowledge can help mitigate potential risks associated with structural failures, ultimately contributing to the development of safer and more resilient infrastructure..

[Audio] The mechanical behavior of steel column base plates under various loading conditions has been studied extensively in recent years. The study focuses on the connection between the steel column and the base plate, which plays a crucial role in determining the overall structural integrity of the building. The connection mechanism involves several key factors such as friction, shear stress, and material properties. The effects of these factors on the mechanical behavior of the steel column base plate are analyzed using finite element analysis. The results show that the connection mechanism significantly affects the stiffness of the steel column base plate. The stiffness of the steel column base plate is influenced by the type of fasteners used, the thickness of the base plate, and the material properties of the steel. The findings suggest that the use of high-strength fasteners and a thicker base plate can improve the stiffness of the steel column base plate..

[Audio] The column base element plays a critical role in the structural integrity of buildings and bridges. The column base element is composed of several key components, including the column cross-section, base plate, stiffeners, anchor rods, concrete foundation, and shear-lug. These components interact with each other to provide the necessary support and stability to the structure. The column base element is responsible for transferring loads from the superstructure to the foundation, and it must be able to withstand a wide range of stresses and strains. In order to achieve this, the column base element must be designed to resist both axial and shear forces, as well as bending moments. The design of the column base element requires careful consideration of the material properties of the column, the dimensions and flexibility of the base plate, the number and positioning of anchor rods, and the interaction between the steel plate and the concrete foundation..

[Audio] The analytical model of Eurocode 3 uses two key parameters: bending moment and compression axial force. These parameters are used to evaluate the analytical model. Additionally, the flowchart of the research methodology is presented here. This flowchart outlines the steps taken to investigate the behaviour of a steel column base plate under various conditions..

[Audio] The specimen under study consists of a HEA160 steel column connected to a concrete footing. The dimensions of the specimen are 1400mm x 600mm x 600mm. The column is welded to the base plate with a thickness of 15mm. The geometry of the specimen is illustrated in Figure 3 and summarized in Table 1. The characteristics of the specimen include the length, width, and thickness of the column, as well as the properties of the materials used. A 3D finite element model was developed using the Ansys code to study the behavior of the column base. The model takes into account both linear and nonlinear effects, including contact between the different elements. The connections between the column, base plate, and other components are modeled as perfect or frictionless contacts. The model uses solid finite elements with 8 nodes and three degrees of freedom per node. The results show how the column base behaves under different conditions, providing valuable insights into its performance. The material properties of the column and base plate were determined through experiments and analysis. The experimental data was used to validate the numerical model. The model was able to accurately predict the behavior of the column base under various loading conditions. The results indicate that the column base can withstand significant loads, but may experience some damage under extreme conditions. The findings suggest that further research is needed to fully understand the behavior of the column base under complex loading scenarios..

[Audio] The numerical model simulates the behavior of the column base connection under different conditions. The model applies surface-to-surface contact between all elements and specifies an axial load of 34 kN. Imposed displacements are also generated for both vertical and horizontal loads. These parameters are crucial in determining the behavior of the connection. The material properties used in the simulation include the elastic moduli and yield strengths of the steel elements, as well as the elastic modulus of the concrete block. The anchor rod is modeled as homogeneous with a specific diameter and length, and it is made of a particular grade of steel with a prestressing value. Loads are applied to the numerical model, starting with the prestressing of the anchor rods, followed by the application of compressive and horizontal forces. Understanding the types of loads applied and their effects on the behavior of the connection is essential. The analytical calculation method used to determine the moment resistance and initial stiffness of the column base connection is based on the component method proposed by Eurocode 3. A mathematical expression is provided for calculating the moment resistance, involving parameters such as the elastic modulus, stiffness ratio, and stiffness factors. Accurately determining the moment resistance and initial stiffness of the column base connection is significant..

[Audio] The moment-rotation curves illustrate the relationship between the applied load and the resulting rotation of the beam at different stages of deformation. The curves show that the initial stiffness increases as the load increases, but then decreases as the load continues to increase. This decrease in stiffness is due to the onset of plastic deformation. In the plastic region, the curves become more horizontal, indicating that the beam's resistance to further deformation decreases significantly. The elastic moment, which represents the maximum stress that can be tolerated by the material, is an essential parameter in determining the beam's behavior under various loading conditions. The ultimate moment, which is reached when the material reaches its yield point, marks the transition from elastic to plastic deformation. The plastic moment, which is reached when the material has undergone significant plastic deformation, indicates the beam's ability to withstand large loads. The moment-rotation curves provide valuable insights into the behavior of beams under various loading conditions, allowing engineers to design and analyze structural connections with greater accuracy..

[Audio] The numerical model has been validated against both the experimental and analytical results. In the elastic phase, the numerical model closely follows the experimental and analytical results. However, in the plastic phase, the numerical model deviates slightly from the experimental result but is closer to the analytical result. The initial stiffness of the numerical model is lower than the analytical result but higher than the experimental result. The numerical model also predicts a slight increase in the moment arm in the plastic phase compared to the elastic phase. Overall, the numerical model provides an accurate representation of the behavior of the joint under bending moment and compressive load. The deviations between the models suggest that other factors such as pre-stressing of rods, contact and friction between elements, and initial imperfections may have affected the results..

[Audio] The speaker explains the deformation of the base plate and the behavior of the anchor rod under maximum loading conditions. They describe how the base plate deformation generates plastic deformation in the taut rod and how the flexibility of the plate contributes to its stiffness and resistance. The speaker also discusses the failure modes of the base plate, including Mode 2, which involves the formation of a partial mechanism accompanied by failure of the rods under tension. They conclude that the numerical failure mode is similar to that of EC3, based on the analysis of the von Mises stress distribution and the yielding of the base plate and anchor rod..

[Audio] The moment-rotation law describes how the column base plate connection behaves under load, showing the relationship between the applied moment and the resulting rotation of the plate. The graph illustrates four stages of failure: yielding of the base plate, yielding of the rod, significant anchor rod yielding, and plastic deformation of the base plate. Each stage is represented by a specific point on the graph, labeled p1, p2, p3, and p4. Numerical models are compared with experimental and analytical data, which shows that the numerical model accurately predicts the behavior of the column base connection. The prying action effect on the base plate's contact with concrete is analyzed, revealing that it can lead to failure mode 2, characterized by increased tensile forces in the anchor rods due to plate deformation..

[Audio] The prying force exerted by the anchor rods influences the connection between the base plate and the column. Initially, both prying forces are equal to the initial prestressing forces multiplied by the total number of anchor rods. As the load increases, the prying force in the tension zone decreases due to increased bending deformation of the base plate. In contrast, the prying force in the compression zone increases as the plate remains in contact with concrete throughout the loading process. The prying effect moves towards the outer edge of the base plate in the tension zone but remains near the axis of the rod in the compression zone. This difference in prying effect positioning is comparable to Eurocode 3, which locates the prying effect on the axis of the compressed flange of the column..

[Audio] The first step in a successful marriage is building strong foundations. This includes having a good relationship with each other, being able to communicate effectively, and sharing common interests. A couple who has these qualities will be better equipped to handle life's challenges together..

[Audio] The anchor rod undergoes both tensile and compressive stresses due to its design. The stresses in the rod vary depending on the location relative to the head of the rod. The elastic, plastic, and ultimate stresses are not uniformly distributed throughout the rod, indicating the presence of a local bending moment. This bending moment causes uneven stress distribution within the rod, particularly around the head. The stresses in the rod are influenced by the type of material used, such as steel, and the specific engineering standards followed, like Eurocode 3. Understanding these factors is crucial for designing and constructing safe structures. The anchor rod's design must consider the effects of these stresses on the structure it supports. The material used for the rod should be able to withstand the stresses imposed upon it. Steel is commonly used for this purpose because of its high strength-to-weight ratio. However, other materials may also be suitable depending on the specific requirements of the project. The choice of material will depend on various factors including cost, availability, and environmental considerations. The structural integrity of the anchor rod is critical to ensuring the stability of the entire structure. Any failure of the rod could have significant consequences, including damage to surrounding buildings or infrastructure. Therefore, it is essential to carefully evaluate the design and construction process to minimize the risk of failure. Regular inspections and maintenance are necessary to ensure that the rod remains in good condition. The use of advanced technologies such as finite element analysis can help engineers better understand the behavior of the anchor rod under different loading conditions. These tools allow for more accurate predictions of stress distributions and potential failures. By using these technologies, engineers can optimize the design of the anchor rod to improve its performance and reduce the risk of failure..

[Audio] The company has been working on a new project for several years, but it has not yet been completed. The project involves the development of a new product line that will be sold through various channels including online platforms. The company has invested heavily in this project, with significant resources allocated to its development..

[Audio] The company has been working on a new project for several years, but it has not yet been completed due to various reasons such as lack of funding, technical difficulties, and changes in management. The team has been working diligently to complete the project, but progress has been slow due to these challenges..

[Audio] The first step in a successful marriage is building strong foundations. This includes establishing trust, respect, and open communication between partners. Trust is built by being reliable, honest, and transparent in all interactions. Respect involves treating each other with kindness, consideration, and empathy. Open communication allows both partners to express their thoughts, feelings, and desires freely. Without these essential elements, a relationship can quickly deteriorate into conflict and disarray. Trust is not just about avoiding betrayal but also about having faith in each other's abilities and decisions. When one partner has faith in the other, it fosters a sense of security and stability. This confidence can help overcome obstacles and challenges that arise during the course of a relationship. Furthermore, when both partners have faith in each other, they are more likely to support each other's goals and aspirations. This mutual support can lead to a stronger and more resilient partnership. Respect is not limited to romantic relationships; it is an essential component of any healthy relationship. In fact, respect is often considered the foundation upon which all other aspects of a relationship are built. Without respect, even the most loving and supportive relationships can become strained and unfulfilling. Respect involves treating others with dignity and compassion, regardless of their background, culture, or personal characteristics. It requires active listening, understanding, and validation of each other's perspectives. Open communication is critical for resolving conflicts and addressing issues within a relationship. When both partners communicate openly and honestly, they can address problems before they escalate into full-blown conflicts. Effective communication helps to prevent misunderstandings and miscommunications that can lead to hurt feelings and damaged relationships. By communicating openly and respectfully, partners can work together to find solutions and resolve disputes in a constructive manner. This approach can foster a deeper understanding and appreciation of each other's needs and desires. In addition to these essential elements, a successful marriage also requires commitment, patience, and flexibility. Commitment means being dedicated to the relationship and working through challenges together. Patience involves tolerating difficulties and setbacks with equanimity, rather than becoming frustrated or angry. Flexibility allows partners to adapt to changing circumstances and navigate unexpected challenges. These qualities enable couples to build a strong and enduring bond that can withstand life's ups and downs. Ultimately, a successful marriage depends on the quality of the relationship itself. While the individual components mentioned above are crucial, they must be balanced and integrated into a cohesive whole. A relationship that lacks balance and harmony may struggle to maintain its vitality and resilience over time. By prioritizing trust, respect, open communication, commitment, patience, and flexibility, couples can create a strong and fulfilling partnership that endures through the years..

[Audio] The first step in a successful marriage is communication. Communication is key to understanding each other's needs, desires, and feelings. Effective communication helps build trust, strengthens relationships, and fosters a sense of unity among partners. Without effective communication, a relationship can quickly deteriorate into conflict and disarray. Effective communication involves active listening, empathy, and clarity. Active listening means paying attention to what your partner says, both verbally and non-verbally. Empathy is about putting yourself in your partner's shoes and trying to understand their perspective. Clarity means expressing your thoughts and feelings clearly and concisely. To achieve effective communication, couples should focus on creating a safe and supportive environment. This environment encourages open and honest dialogue, allowing partners to express themselves freely without fear of judgment or criticism. A safe space also allows for vulnerability, which is essential for building intimacy and trust. In addition to creating a safe environment, couples should prioritize active listening and empathy. They should strive to understand each other's needs, desires, and feelings, and respond accordingly. By doing so, they can foster a deeper connection with each other and strengthen their relationship. Effective communication is not just about conveying information; it's also about being present and fully engaged in the conversation. Couples should make an effort to put away distractions like phones and TVs, and instead focus on each other. Being present and fully engaged helps create a sense of mutual respect and understanding. Ultimately, effective communication is crucial for any successful marriage. It requires effort, commitment, and practice from both partners. With consistent practice, couples can develop the skills necessary to communicate effectively and maintain a healthy, happy relationship." Here are the answers:.

[Audio] The stiffener geometry varies with the height of the stiffener as shown in Figure 25. The deformation of the column base connection changes with the height of the stifferer as seen in Figure 26. Table 5 lists the various specimens used in the study, including those with different stiffener heights. The results from these specimens are summarized in Table 6, which shows the effect of stiffener height on the initial stiffness and plastic moment of the column base connection. Increasing the stiffener height leads to an increase in both the initial stiffness and the plastic moment. The moment-rotation curve in Figure 27 illustrates the relationship between the moment applied to the column base connection and the rotation of the base plate. This curve shows that the moment does not stop at the same value regardless of the stiffener height. Instead, it continues to increase until a plastic hinge forms in the connection, resulting in a higher plastic moment. Overall, the data suggests that the stiffener height plays a crucial role in determining the properties of the column base connection..

[Audio] The stiffener height has a significant impact on the initial stiffness and bending resistance of the column base plate. As the stiffener height increases, the plastic deformation decreases, allowing the stiffener to modify the failure modes in the column base plate. This means that higher stiffener heights result in lower plastic deformations, leading to improved bending resistance. The table provided in the slide shows the effect of stiffener height on initial stiffness and plastic moment. The data indicates that the initial stiffness increases with increasing stiffener height, while the plastic moment decreases. The prying force in the connection also decreases with increasing stiffener height. The prying position shifts towards the end of the baseplate as the stiffener height increases. These findings suggest that the stiffener height plays a crucial role in modifying the failure modes in the column base plate..

[Audio] The stiffener's height determines its position relative to the center of compression. This position affects the prying force exerted by the column base plate connection. The prying force decreases when the center of compression shifts. The study focused on the impact of stiffener shape on the moment-rotation curves. Researchers examined two types of stiffeners: rectangular and triangular. These stiffeners had varying heights. The findings revealed that the maximum von Mises stress occurs at the top of the rectangular stiffener. The maximum von Mises stress is highest when the stiffener is short. Regardless of the stiffener type, the maximum von Mises stress is greater than that of the triangular stiffener. The rectangular stiffener produces more stress concentrations than the triangular stiffener. The rectangular stiffener has a higher maximum von Mises stress than the triangular stiffener. The difference between the two stiffeners becomes more pronounced as the height of the stiffener increases..

[Audio] The von Mises stresses in the rectangular and triangular stiffeners are illustrated in the figure. The stresses vary depending on the location within the stiffener. In the case of the rectangular stiffener, the upper triangular part has lower stresses. This suggests that removing this part could reduce material usage while maintaining structural integrity. The triangular stiffener exhibits more uniform stress distribution. Its design appears to be more efficient than the rectangular one. The stresses in the upper triangular region of the rectangular stiffener are significantly lower than those in the rest of the component. This observation supports the idea that this portion of the stiffener can be optimized or even removed to minimize material consumption. The comparison between the rectangular and triangular stiffeners reveals that the latter has a more consistent stress pattern throughout its structure. The consistency is likely due to its design, which provides better resistance to external forces. Overall, the analysis highlights the importance of optimizing stiffener designs to achieve optimal performance and minimize material waste..

[Audio] The speaker explains that the research focused on analyzing the behavior of a column base connection subjected to both compressive and bending forces. They used a three-dimensional numerical model to simulate the behavior of the connection, taking into account material nonlinearity, potential instability, and contact effects. The results from the finite element model were validated against existing experimental data and compared with analytical calculations based on the EC3 formulations. The speaker highlights the importance of considering the geometry and material properties of the connection components, including the stiffeners, in order to accurately predict their behavior under various loading conditions. The findings suggest that the proposed numerical model can provide reliable results for analyzing the behavior of column base connections with stiffeners. The speaker notes that the model can capture the complex interactions between the different components of the connection, including the effect of prestressing on the anchor rods and the prying forces acting on the column base. The key takeaways from the research include the significance of stiffeners in improving the mechanical properties of column base connections, particularly in terms of stiffness and bending resistance. The speaker concludes by emphasizing the value of the proposed numerical model in providing accurate predictions of the behavior of column base connections under various loading conditions..

[Audio] The researchers conducted experiments using a combination of methods, including finite element modeling and physical testing. The results showed that the column base connections exhibited significant differences in behavior under various loading conditions. The findings suggest that traditional assumptions about the behavior of column base connections are not always accurate..

[Audio] The experimental behavior of steel column bases has been studied extensively by Hon and Melchers in their paper titled Experimental Behavior of Steel Column Bases published in the Journal of Constructional Steel Research in 1989. Similarly, Ermopoulos and Stamatopoulos investigated the mathematical modeling of column base plate connections in their paper published in the same journal in 1996. These studies provide valuable insights into the mechanical behavior of steel column bases and their connections. Additionally, other researchers have conducted experiments on bolted composite joints, cyclic behavior of exposed base plates, and shear capacity of jointed rock masses with prestressed anchor bolts. These studies demonstrate the importance of understanding the mechanical behavior of steel column bases and their connections in various engineering applications..
